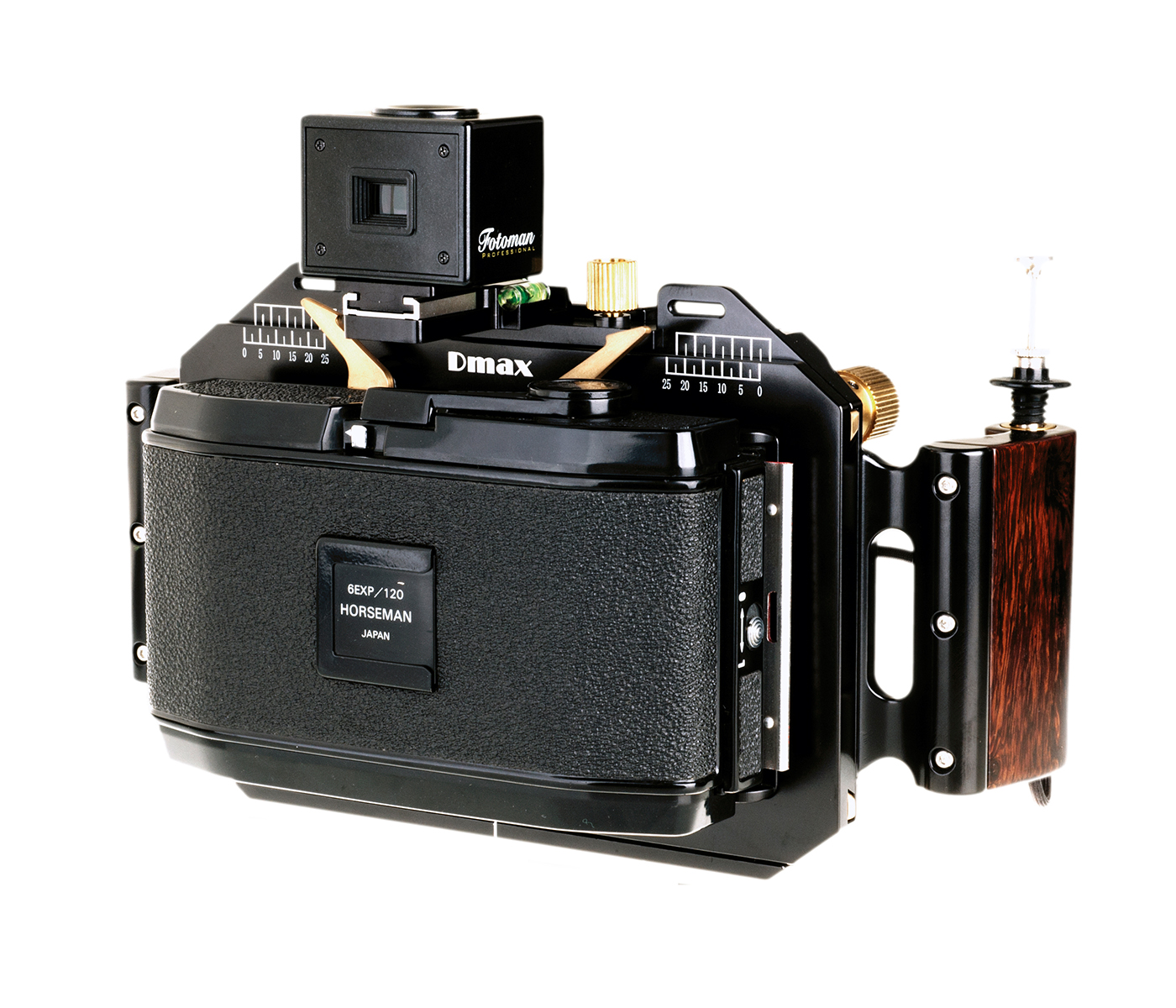

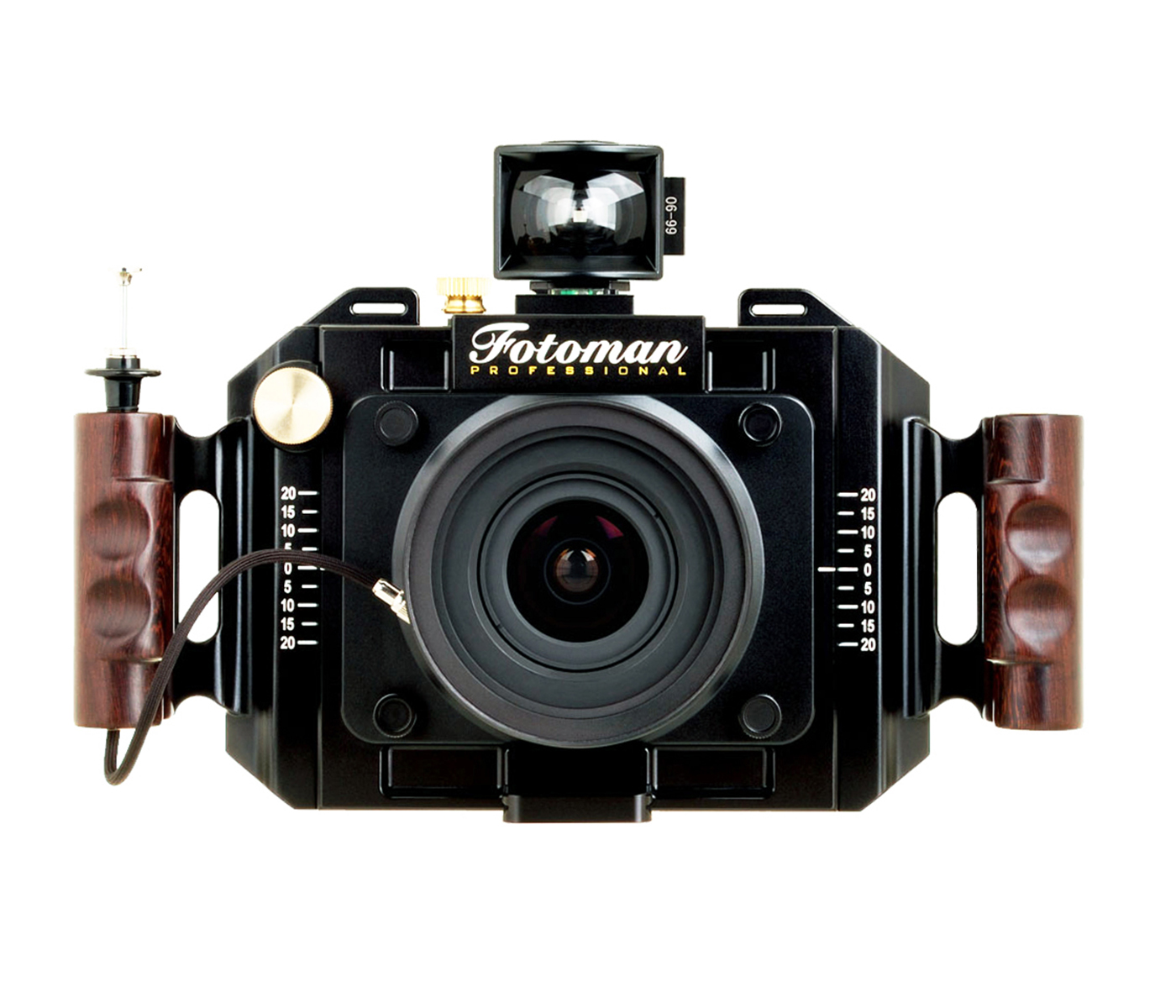

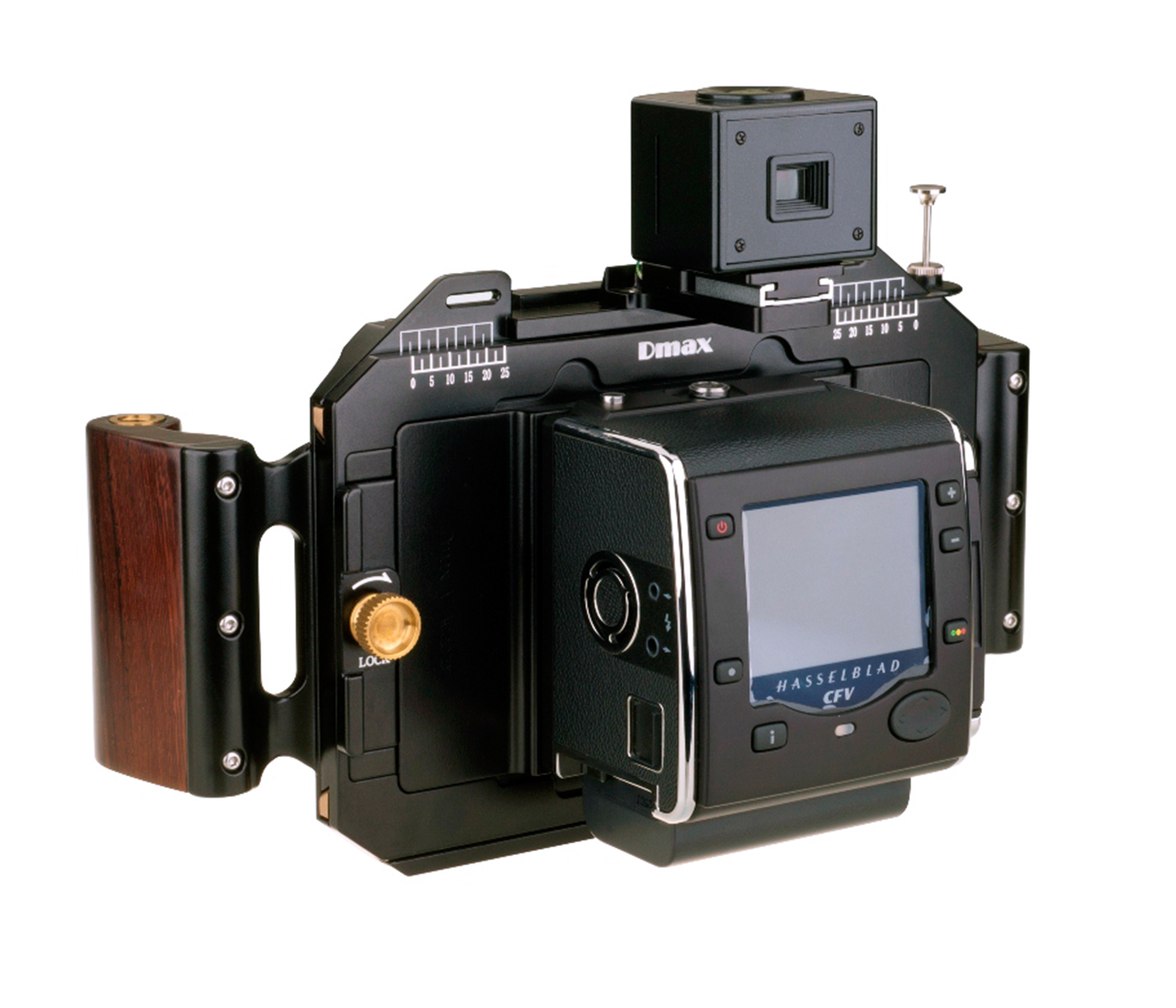

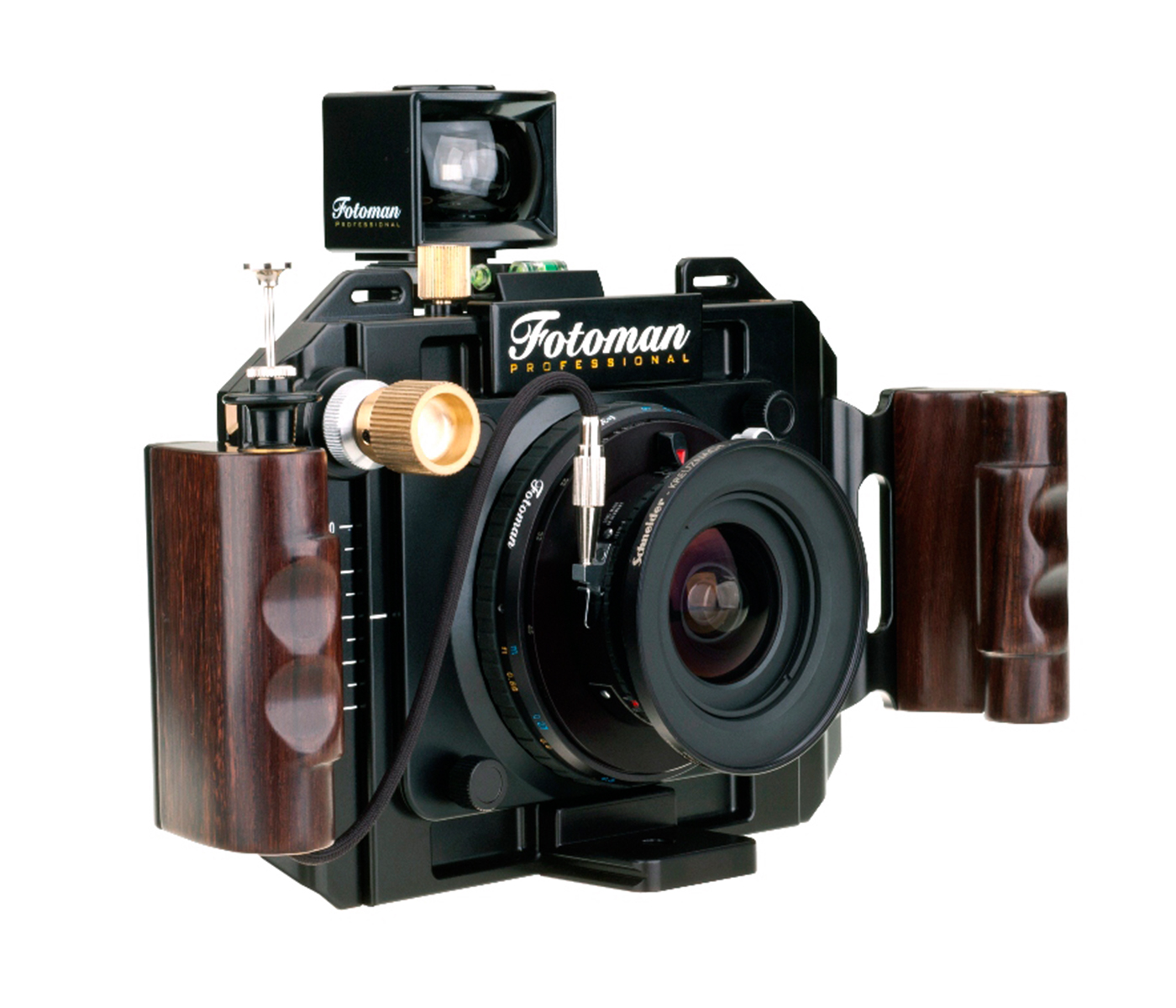

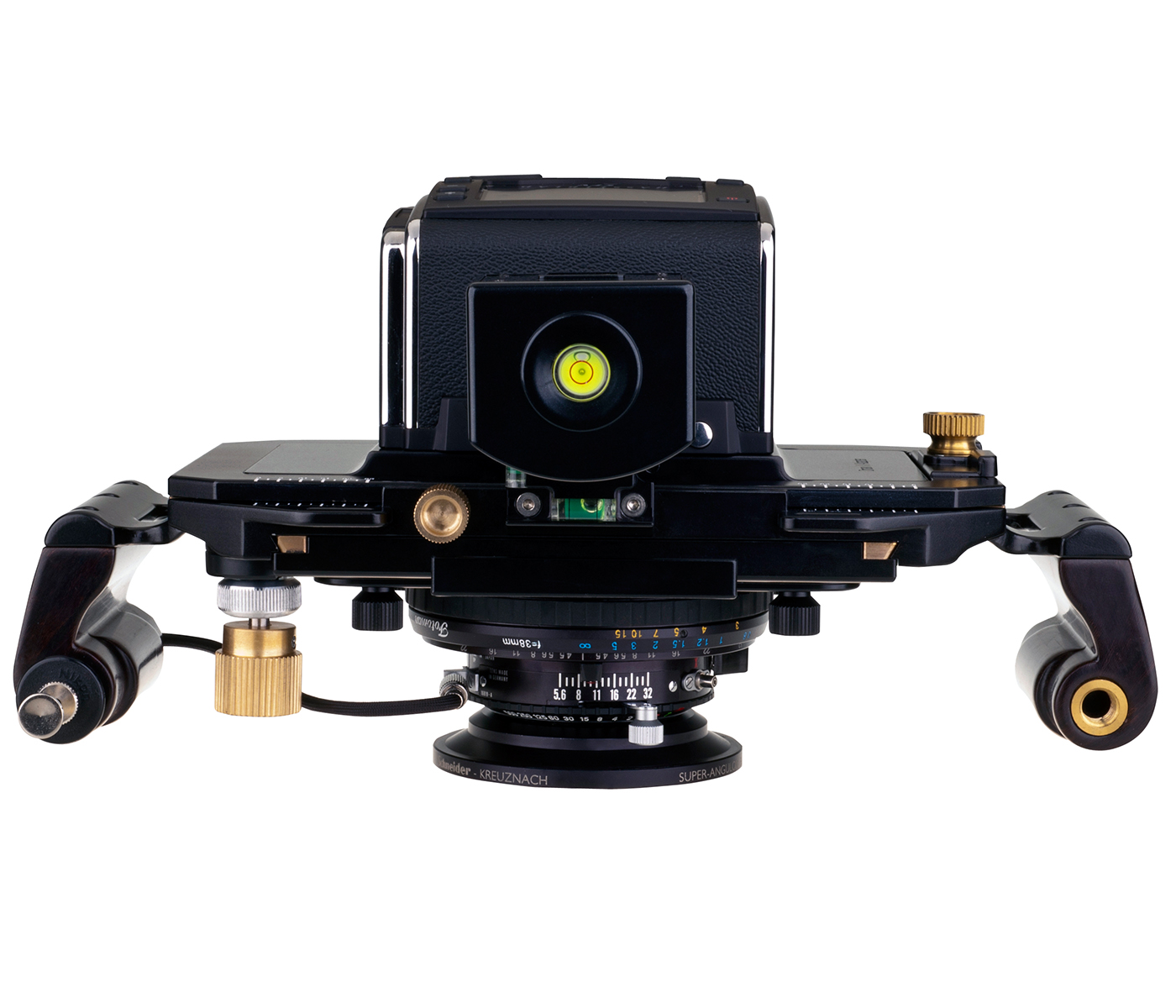

When it comes to versatility the designers at Fotoman surpassed expectation. The Fotoman Dmax has a lens rise and fall of 20mm in either direction totaling 40mm of movement. The back of the camera has a 25mm shift movement from left to right totaling 50mm. The Dmax can accept film backs from Hasselblad (6x6), Mamiya (RB 6x7 and RZ 6x8) and Horseman (6x9 and 6x12). To make this product more appealing the Dmax is compatible with Hasselblad, Phase One, Leaf and Mamiya digital backs. To make the backs easy to use Fotoman designers have created a sliding back, to use with the compatible digital backs mentioned above, and that can be fitted with an optional ground glass viewfinder.

Without sacrificing the tolerance of utilizing a 612 film back, the Dmax can support Schneider 38mm/5.6XL  and other lenses include 45mm, 47mm, 58mm, 65mm, 72mm, 75mm, 80mm, 90mm, 135mm, 150mm, 180mm, 210mm, 300mm. Lenses of different focus length & different brands can be mounted to the Dmax with a matching cone assembly. All of this flexibility and innovation combined with the exceptional quality of large format lenses, the Fotoman Dmax camera is a great tool for unlocking a new level of creativity.

Designed as a panoramic camera for 6x12 users the Dmax is ideally suited for landscape, commercial, or architectural photographers allowing for complete control of the lens and back. Handheld or mounted on a tripod the Dmax produces exceptional imagery in any application.

NOTE:

This list is a comprehensive list however there may be additional lenses that can be adapted to this camera.  Lenses with flange focal distances that are between 51.8mm and 252.4mm can be adapted to this camera.

Unique lenses, that we do not have technical data relating to the flange focal distance, it is the responsibility of the customer to provide the correct or most accurate information.  Calibration issues as they relate to the flange focal distance and this technical data will not result in refunds or discounts.

If  a unique lens is supplied to Fotoman Professional to adapt to a cone assembly it is the responsibility of the customer to pay shipping of the lens to Fotoman Professional offices.
