Dmini Camera Body




The design concept of Dmini lives up to its name. A fairly small camera in terms of dimension and weight, but “packs and punch” in terms of its digital capabilities, offering high resolution and dynamic results. The Dmini is a cool design combined with high resolution large format lenses will produce a very sharp image with incredible tonal range and depth field. Focusing is done with the use of the Fotoman Helical Focusing Mount or the optional ground glass viewfinder (V-adapter only). Best suited as a handheld point and shoot camera it is no stranger to a studio.


The Dmini has adapters for Hasselblad, V, M, Contax and Mamiya mounts for both film and digital. Add your digital back and a digital large format lens to make the Dmini a powerful tool that can hold its own both in the studio and on the street.


Dmini supports the latest digital lens sizes including  23mm & 24mm wide angles. It can also support 28mm, 35mm, 38mm, 47mm, 55mm, 58mm, 65mm, and a variety of older film lenses.


Leave your light meter at home once you snap on a digital back and a digital lens making yourself a high end digital camera that is compact and mobile.


Camera Type: Digital Point & Shoot Camera
Formats: Maximum 6x6cm or According to CCD sensor size
Focus Method: Helical Focus Mount and Ground Glass View Finder (V mount only)
Viewfinder: 120 degree with Interchangeable Masks
Camera Adapters: 4 kinds of different Adapters (Hasselblad, V, H, Mamiya and Contax)
Usable Film Backs: Hasselblad 6x6 Film backs (A12, A24)
Usable Digital Backs: Hasselblad, Phase One, Leaf, Mamiya, Contax
Lens Mount: Current Fotoman Helical Focus Mount with Cone Assembly (Copal 0#, Copal 1#)
Material: 6061T Aluminum Alloy
Body Dimensions: 60mm x 138mm x 46mm
Weight: 361g (Not including Back or Lens Cone Assembly)















NOTE:

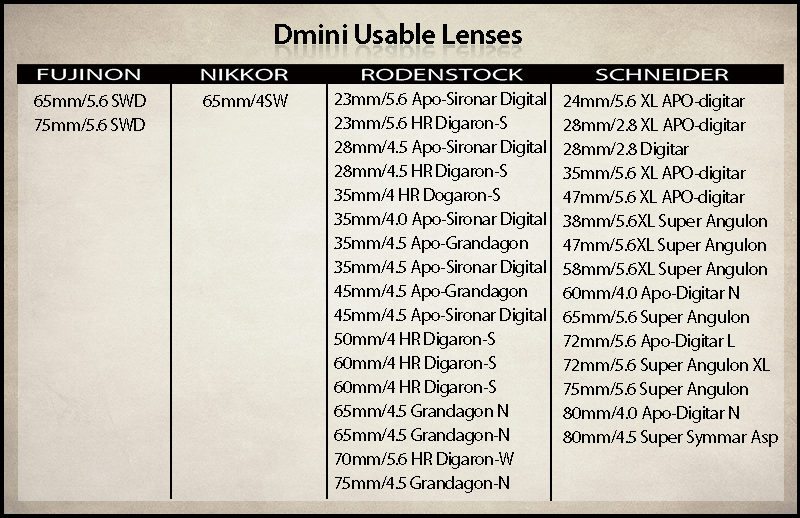

This list is a comprehensive list however there may be additional lenses that can be adapted to this camera.  Lenses with flange focal distances that are between 39mm and 85mm can be adapted to this camera.



Unique lenses, that we do not have technical data relating to the flange focal distance, it is the responsibility of the customer to provide the correct or most accurate information.  Calibration issues as they relate to the flange focal distance and this technical data will not result in refunds or discounts.



If  a unique lens is supplied to Fotoman Professional to adapt to a cone assembly it is the responsibility of the customer to pay shipping of the lens to Fotoman Professional offices.
